21.1. Introduction¶

Single-color LEDs are semiconductor light sources that emit light within a specific wavelength range, producing a distinct color output. Utilizing various semiconductor materials, these LEDs serve a spectrum of applications, from indicators and displays to scientific uses and beyond.

21.2. The principle¶

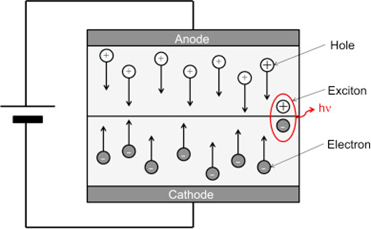

LED operates leveraging the phenomenon of electroluminescence within semiconductor materials. When a voltage is applied across the leads of a LED, electrons and electron holes recombine within the semiconductor material, releasing energy in the form of photons.

../_images/LED_4.png

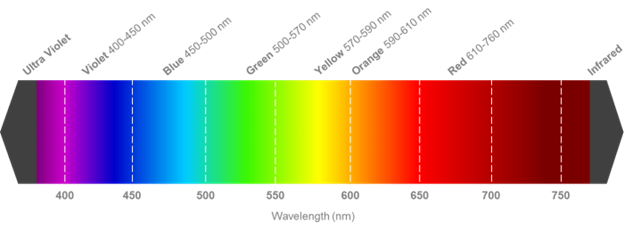

The energy of these photons determines the wavelength of light emitted, which is specific to the semiconductor material used in the LED. By controlling the semiconductor material’s composition and structure, we can produce LEDs that emit light in specific colors, such as red, yellow, green, or ultraviolet.

../_images/LED_5.png

The voltage needed to enable an LED is called forward voltage, which has to be applied across the LED from anode to cathode. LEDs of different colors have different forward voltage requirements.

../_images/LED_6.png

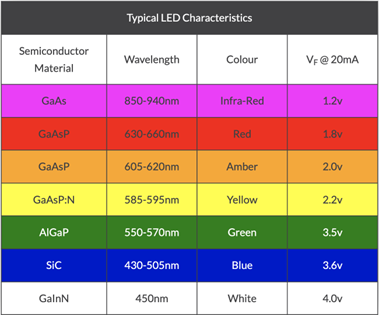

Generally, colors in lower energy like red have the lower forward voltage, and colors in higher energy like blue have the higher, but eventually, it is determined by the design and the semiconductor material.

../_images/LED_7.png

Red LED

Red LED emits light primarily in the red part of the visible spectrum, typically around 610-760 nm. Its forward voltage is relatively low, around 1.6 to 2.0.

Yellow LED

Yellow LED emits light in the yellow part of the visible spectrum, typically around 570-590 nm. It can be produced by combining red and green light through a phosphor coating. Its forward voltage is 2.1 to 2.2.

Green LED

Green LED emits light in the green part of the visible spectrum, typically around 500-570 nm. Its forward voltage varies in a wide range, from 1.9 to 4.0.

Ultraviolet LED

Ultraviolet LED emits light in the ultraviolet region of the electromagnetic spectrum, typically with wavelengths shorter than 400 nm, which is generally invisible to the human eye. It has higher forward voltage ranging from 3.1 to 4.0.
