5. Chapter 2: Send Email by IFTTT

IFTTT is the way to connect hundreds of the apps and devices, including Twitter, Dropbox, Email, Google Assistant, etc. By the basic programming logic “if this then that”, it connects IoT services through their API (application programming interface).

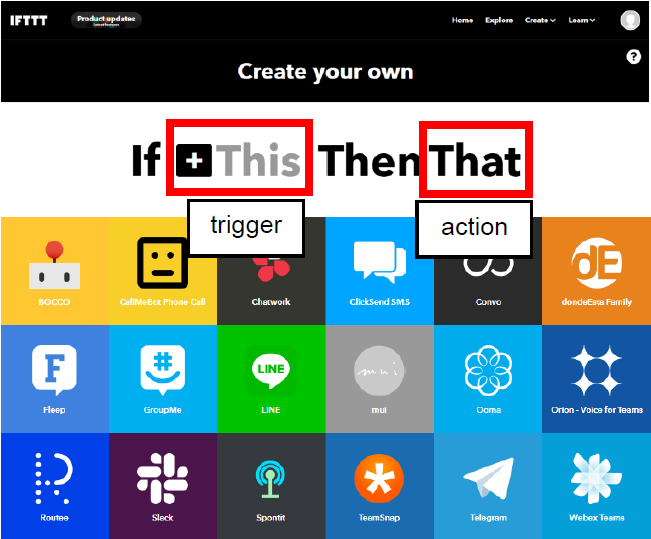

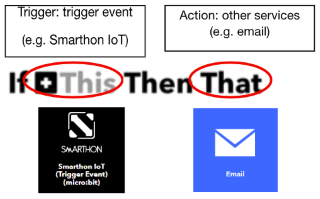

In IFTTT, you can make your own applet and link services together by “if this(trigger) then that(action)”. For example, if we select webhooks (micro:bit button A) as trigger, Email (send email to your mailbox) as action. When micro:bit button A is pressed, it triggers (webhooks) and implement the action (send email) in IFTTT.

auto_fit

In this chapter, you will learn using micro:bit to activate trigger (webhooks). After that, it can implement other services (e.g. email)

auto_fit

5.1. Coding (Makecode)

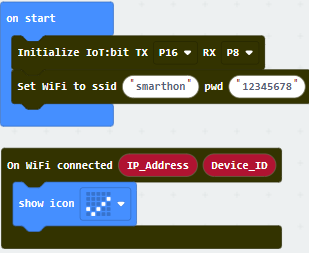

Step 1: Connect WiFI

Before we try to use WiFi Control function, we need to connect to the network, we have already know how to connect to the WiFi on the first chapter.

auto_fit

Step 2: Get Device ID

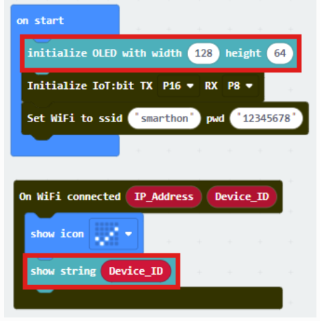

On WiFi connected is an event handler. It will be triggered once after connected with WiFi. The handler will provide the Device ID variable which used to identify and control the Microbit.

  • Go to OLED Tab

  • Snap initialize OLED with width…height.. to on start

  • Snap the show string inside the On WiFi connected

  • Draw the Device ID variable from On WiFi connected to the show string block placeholder

    auto_fit

*If you worried about forget the Device ID during program running, you may access it by the variable under Control tab

  • Go to Control tab

  • Snap the Device ID variable to the placeholder auto_fit

Step 3: Send IFTTT request

When need to send IFTTT request, if WiFi connected, send data to IFTTT. Input the following data of the IFTTT Application to the Send IFTTT event name… block

  • event_name: event name to trigger in Webhooks (eg. SendEmail)

  • value 1-3: if user want to add the value inside the email, click the add button and input value1, value2, value3


auto_fit

Step 4: Check IFTTT upload status

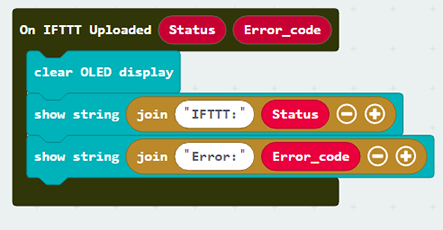

If you want to show the IFTTT upload status, you can use the “on IFTTT Uploaded” handler to check the variable. You may use the OLED to display the status and error code.

  • Snap the show string inside the On IFTTT Uploaded

  • Draw the variable from On IFTTT Uploaded to the show string block placeholder

auto_fit

Full Solution

MakeCode: https://makecode.microbit.org/S72229-35443-84797-10160

You could also download the program from the following website:

5.2. IFTTT Configuration

Goal:

Create applet

Step 1

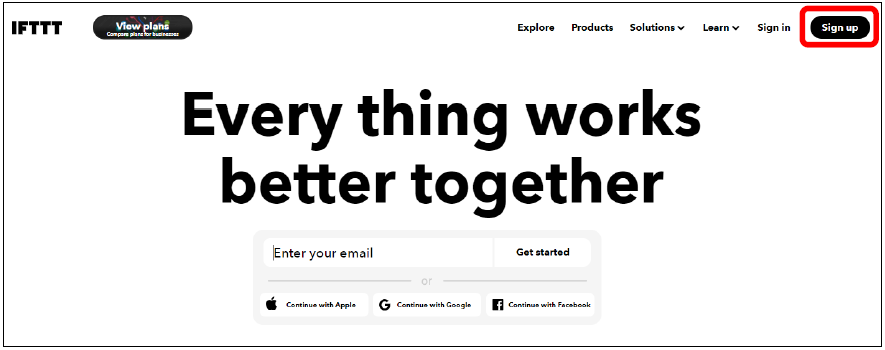

Go to http://www.ifttt.com, register an account and login to the platform

auto_fit

Step 2

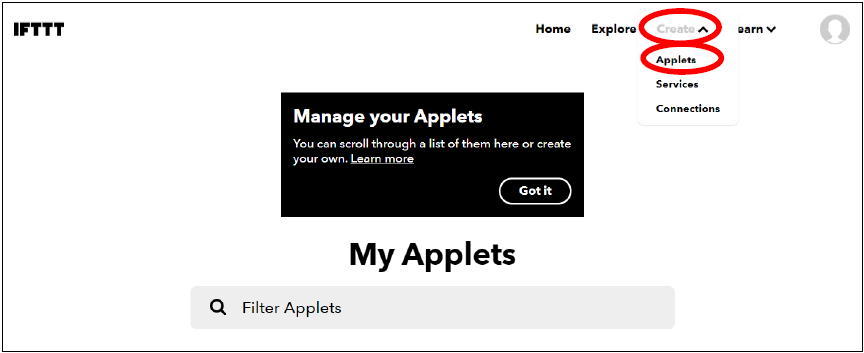

On the top right menu, click “Create” > “Applets”

auto_fit

Step 3

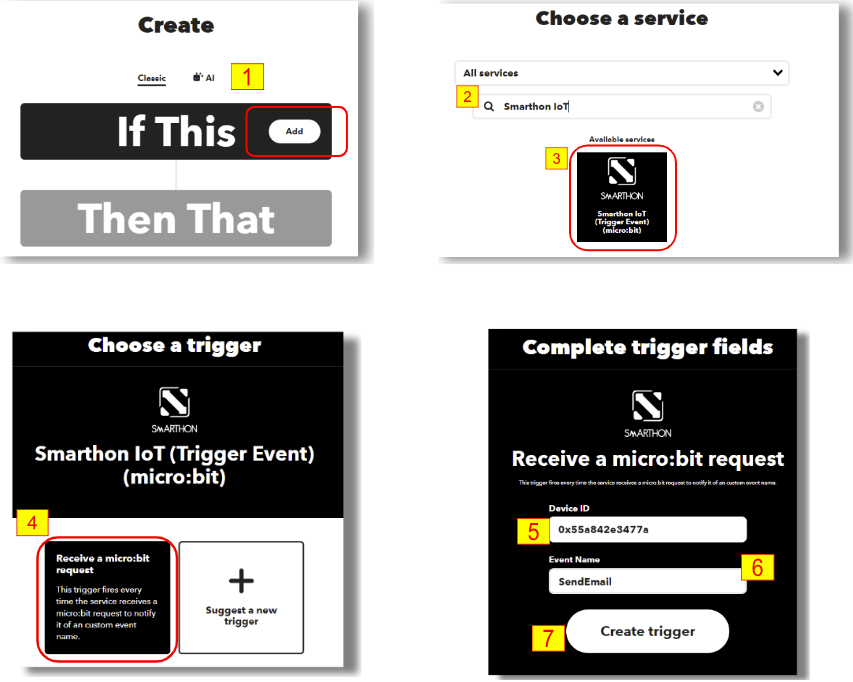

  • Select this

  • Select Smarthon IoT

  • Input Device ID and Event Name. (eg. Device ID: 0x55a842e3477a, Event Name: SendEmail)

  • Click “Create trigger”

auto_fit

Step 4

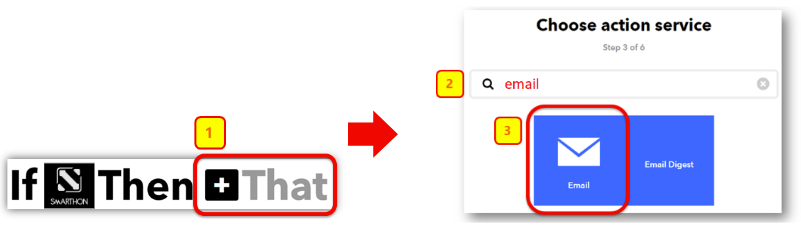

Select “That” > Email > Email

auto_fit

Step 5

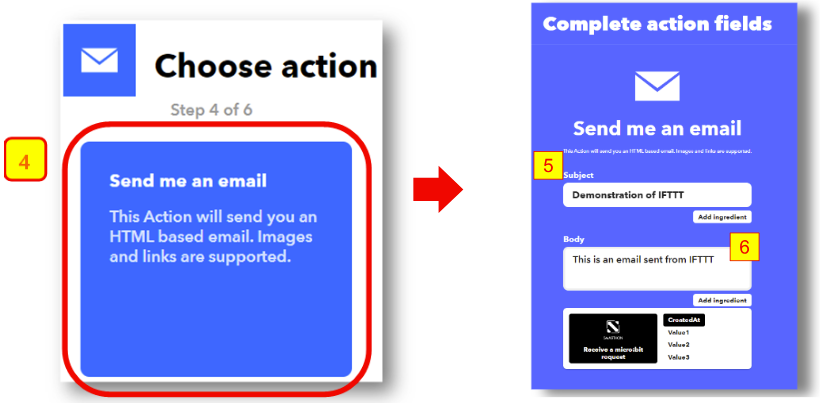

Select “Send me an email” , Input email title and body, then click “Create action”

auto_fit

5.3. Result

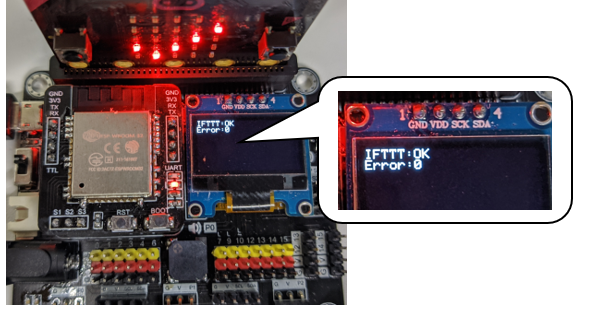

After micro:bit is connected to WiFi and click button A, it will upload data to IFTTT.

If the upload is success, it will show OK with error code 0

auto_fit

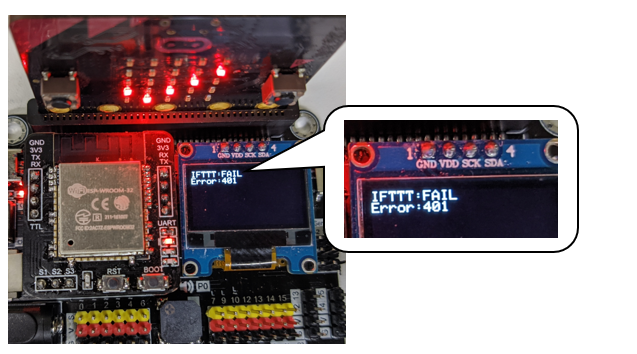

If the upload is fail (such input wrong API key in this case), it will show FAIL with error code.
For the error 401, the user inputted the wrong API Key. For the error code -28674, there is no internet connection.

auto_fit

When success, email will be sent to your mailbox by IFTTT.

auto_fit
