7. Chapter 4: Cloud Control micro:bit by IFTTT

7.1. Introduction

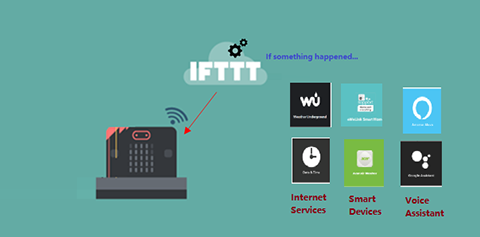

In this chapter, you will know how to control micro:bit from the IFTTT cloud. Once there are some changes on Internet services like weather, time or different connected devices like voice assistant and some smart home device, you can send the command to micro:bit to do the action.

auto_fit

In practice, the below example you may apply for:

  • Turn the street light on at 6pm and off after 6am everyday

  • Turn on the water pump every day at 06:00 for 2 second

  • If the forecast weather is rain, open the umbrella

  • Use voice command to control robot actions

  • When the door is closed, LED is turned on.

7.2. Scenario Example

Goal:

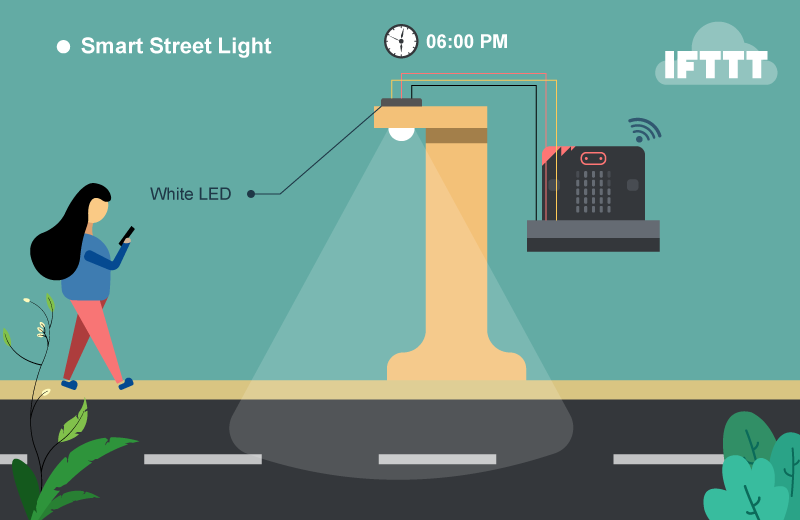

The micro:bit is connected to the Internet. Once the time is changed to 6 pm, the IFTTT cloud will send the command to the micro:bit to turn on the LED.

Description:

In this example, there are 2 parts involved.

  • In part 1, we need to connect the micro:bit to the internet and get the device ID.

  • In part 2, set the rule on IFTTT applet. If the time is 6 pm, set the command “light_on”

auto_fit

7.3. Part 1: Coding

Goal:

We need to get the Device ID and set the corresponding action.

Connection Diagram:

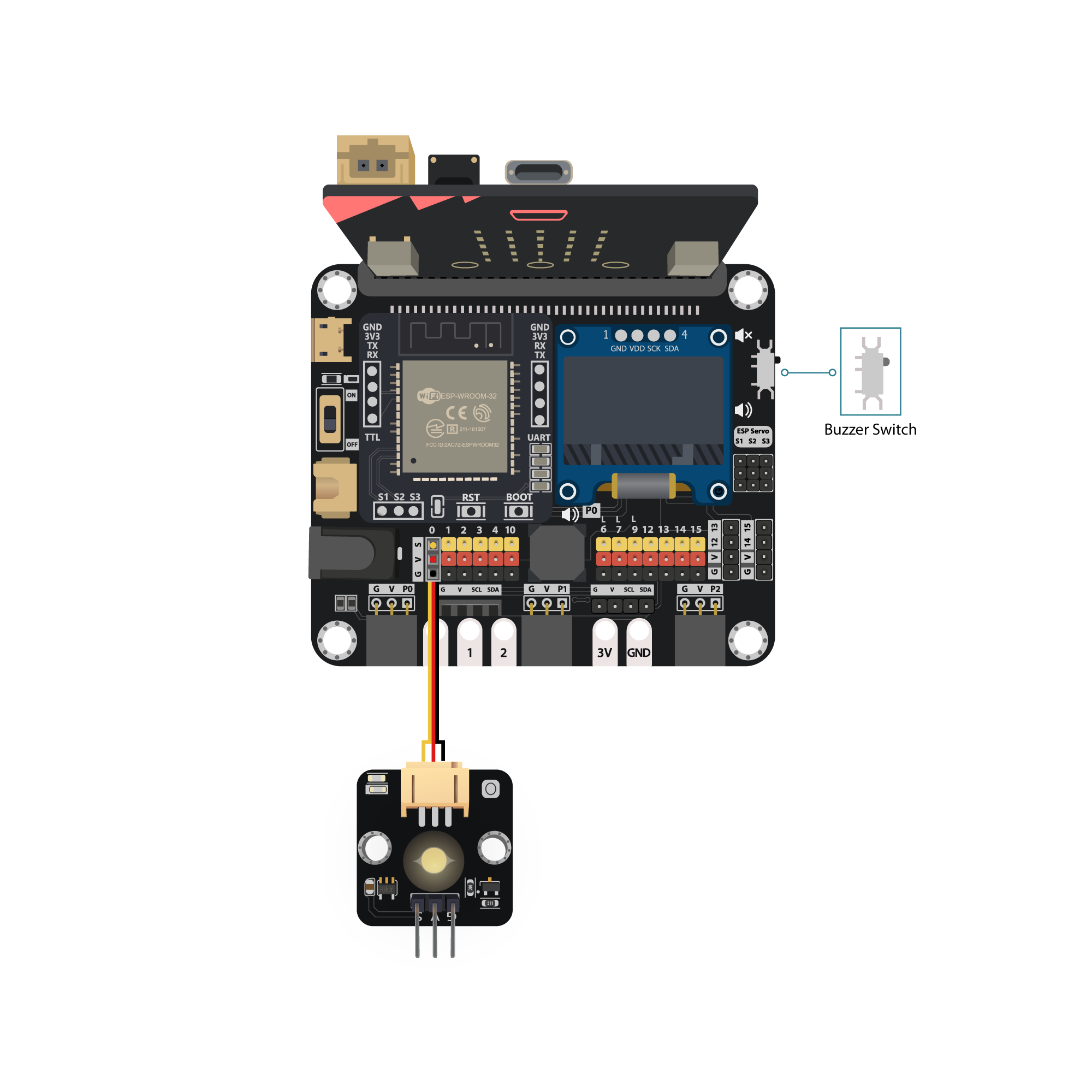

  • Connect LED to P0

    auto_fit

Pull the buzzer switch ‘up’ to disconnect the buzzer in this execrise

Step 1: Connect WiFi

Before we try to use WiFi Control function, we need to connect to the network, we have already know how to connect to the WiFi on the first chapter.

auto_fit

Step 2: Get Device ID

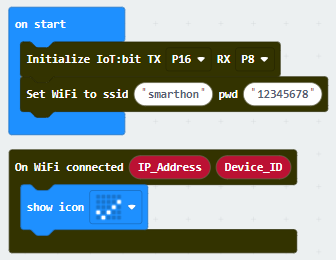

On WiFi connected is an event handler. It will be triggered once after connected with WiFi. The handler will provide the Device ID variable which used to identify and control the Microbit.

  • Go to OLED Tab

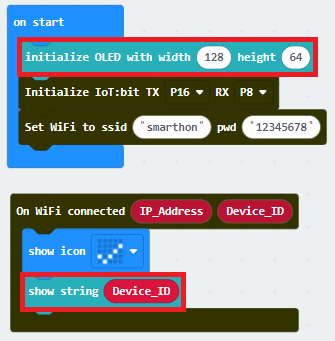

  • Snap initialize OLED with width…height.. to on start

  • Snap the show string inside the On WiFi connected

  • Draw the Device ID variable from On WiFi connected to the show string block placeholder

auto_fit

*If you worried about forget the Device ID during program running, you may access it by the variable under Control tab

  • Go to Control tab

  • Snap the Device ID variable to the placeholder auto_fit

Step 3: Control with Command

After connected to the WiFI, the connection to the server will be done automatically, it is ready to receive command though network. To get the command, we can use the on Wi-Fi received handler in WAN control tab.

  • Snap the on WiFi received handler to stage

  • Do the if-condition statement to the variable WAN_Command

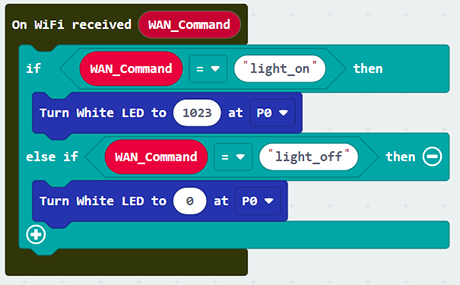

  • If Wan_command “light_on” is received, white LED will be turned on (intensity:1023)

  • If Wan_command “light_off” is received, white LED will be turned off (intensity:0)

auto_fit

Step 4: Show the Command

Sometimes you may need to show the recevied command for debugging, so if you need that, you can use the OLED show string to display the command on the OLED.

  • Go to OLED

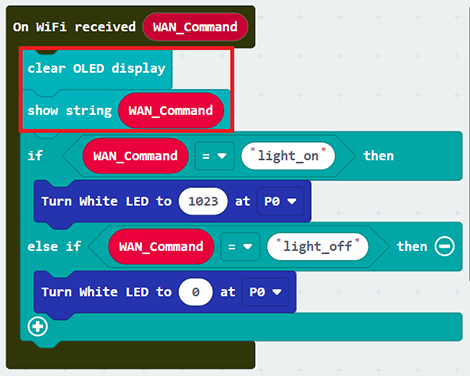

  • Snap the clear OLED display to On WiFi received to avoid overlap

  • Snap the show string to On WiFi received

  • Draw the WAN_Command variable to show string placeholder

auto_fit

Advanced Usage(with value):

If you want to control the module with value, you can use the another block which contain value variable.

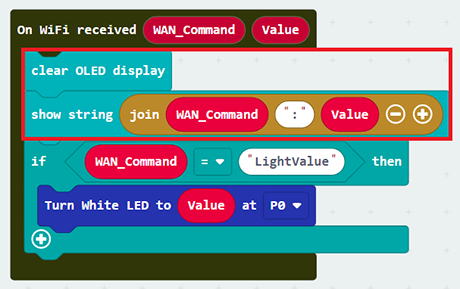

If Wan command “LightValue” is received, white LED will be turned on with the given intensity value.
You may also show the WAN_Command and value by show string.

auto_fit

Full Solution

MakeCode: https://makecode.microbit.org/S67803-65779-86952-86954

You could also download the program from the following website:

7.4. Part 2: IFTTT Applet Configuration

Goal:

We need to setup the IFTTT Applet to control the Micro:bit

Step 1: Create or login to IFTTT account

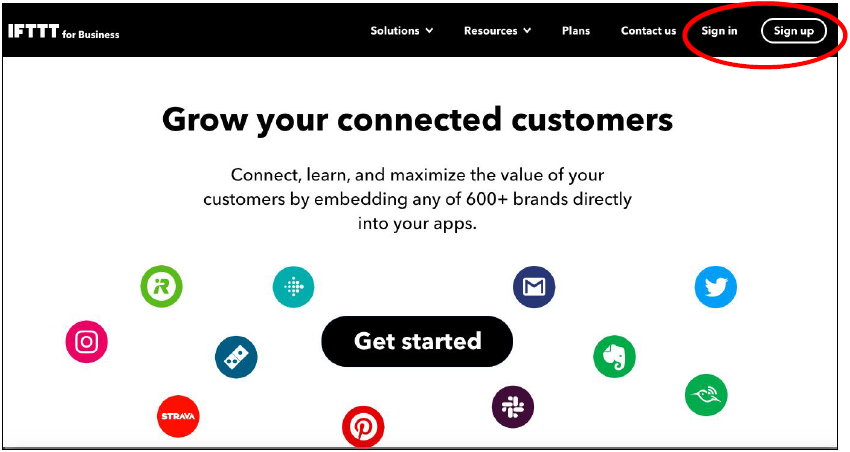

Open your browser , go to https://ifttt.com/. Register your IFTTT account and once completed, log in to your IFTTT account.

auto_fit

Step 2: Create Applets

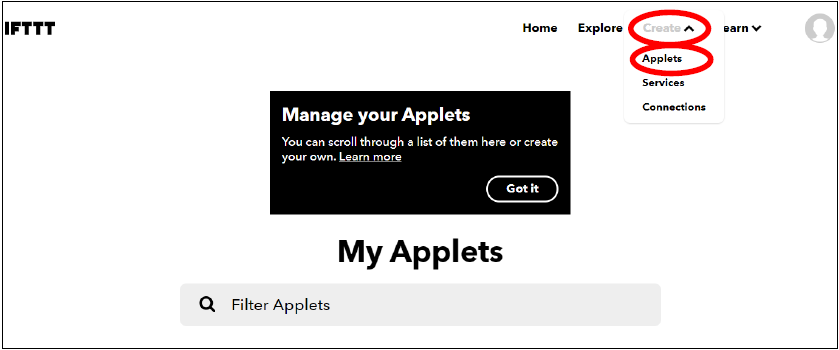

On the top right menu, click “Create” > “Applets”

auto_fit

Step 3: Set the Rules

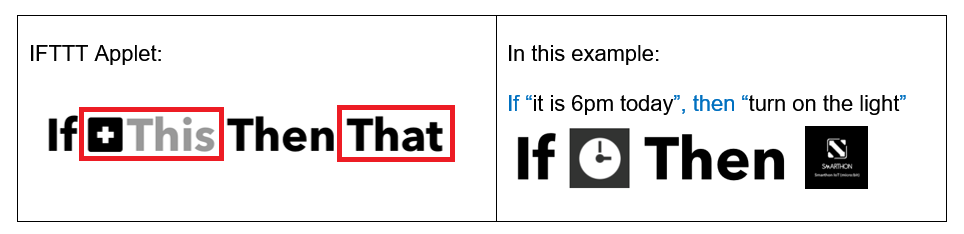

On IFTTT configuration, set the below. We can set the rule on the IFTTT, if something happened like time at 6:00 p.m., we can do the corresponding action.

auto_fit

A. Trigger Part

auto_fit

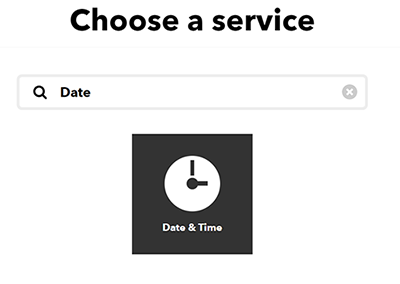

1.Search “Date” and select “Date & Time”

auto_fit

2.Finish the time setting.

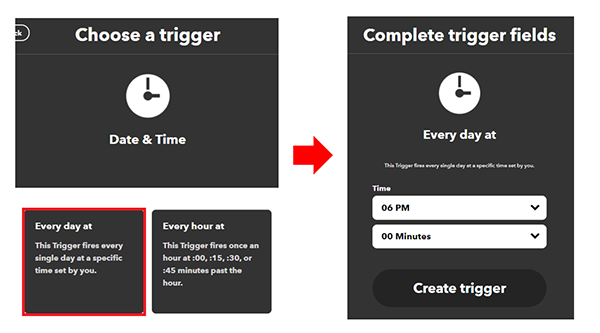

  • Choose trigger “Every day at”

  • Select the time (e.g. 06PM, 00Minutes; it menas every day at 6pm) and click “Create trigger”

auto_fit

B. Action Part

auto_fit

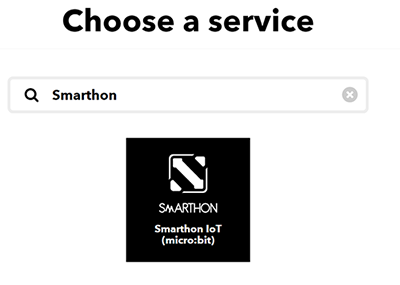

1.Search “micro:bit” and you will see “Smarthon IoT(micro:bit)”

auto_fit

2.Finish the Micro:bit setting.

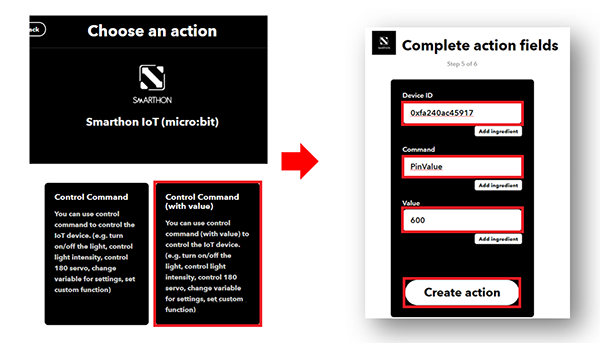

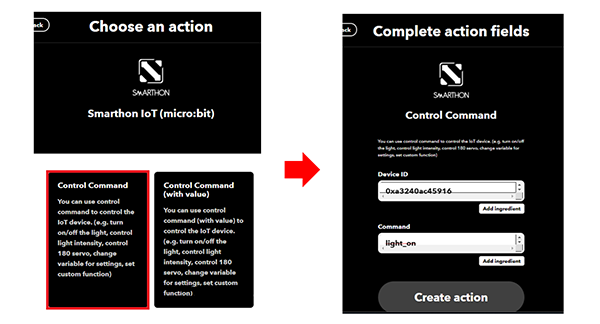

  • Choose action “Control Command”

  • Input your Device ID (e.g. 0xa3240ac45916) and control command (e.g. light_on). Then click “Create action” auto_fit

Optional

If you need to send the command with value to the micro:bit

auto_fit

7.5. Result

Normal Case:

After connected to WiFi, micro:bit will connect to control server and keep listening to the WAN command

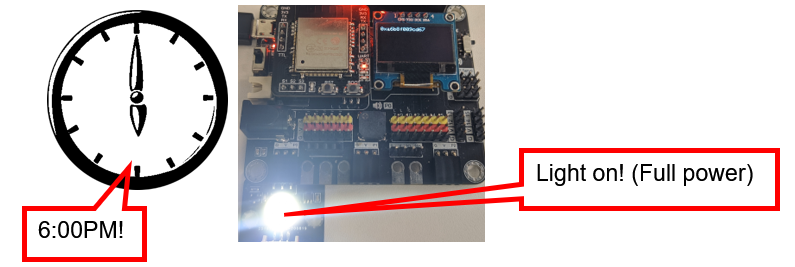

  • Every day at 6pm, clock will trigger IFTTT to send out micro:bit WAN command “light_On”

  • Micro:bit will recevie the command

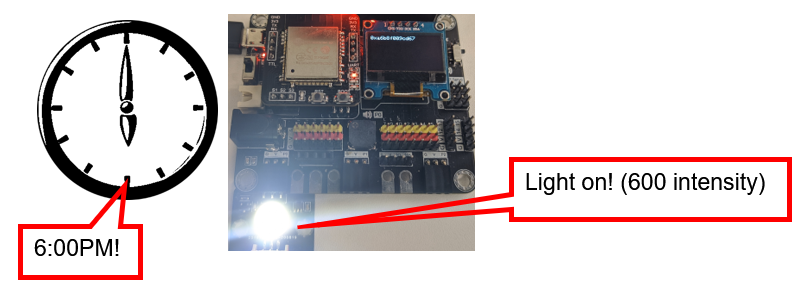

  • The LED on P0 will be turned on. auto_fit

Advanced Usage(with value):

When change the applet to contain value version, it will have an additional variable value included

  • Every day at 6pm, clock will trigger IFTTT to send out micro:bit WAN command “LightValue” (with value “600”)

  • Micro:bit will recevie the command

  • The LED on P0 will be turned on (with light intensity: 600). auto_fit
