8. Case 05: Car speed monitoring

Level: level auto_fit

8.1. Goal

Make a car speed monitor to detect car speed on the road.

8.2. Background

What is car speed monitoring?

It is an automatic system to check car speed on the road at certain time interval. There are cars often over-speed causing traffic accidents, therefore installing a car speed monitoring is a must to minimize the chances of traffic accidents.

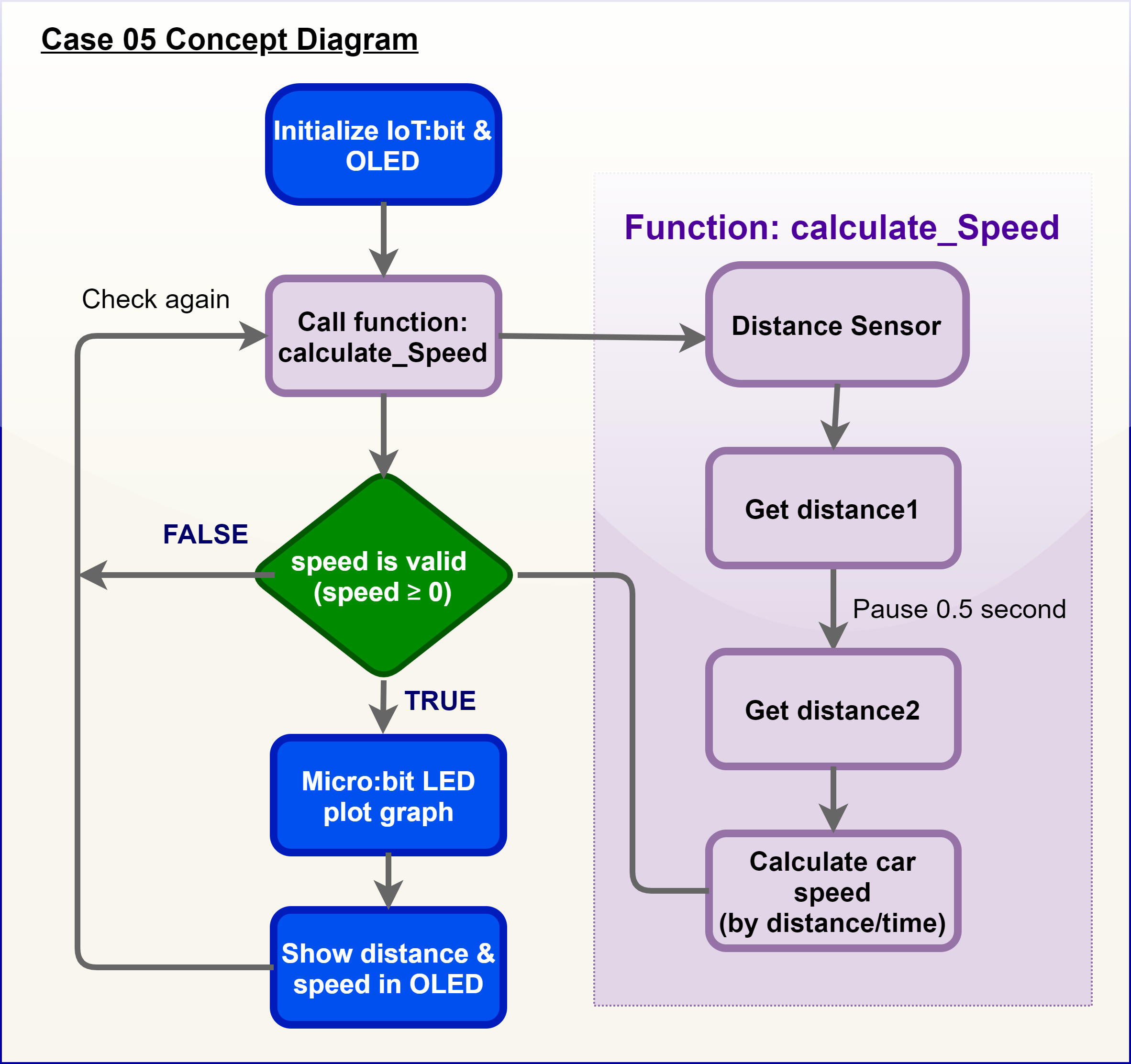

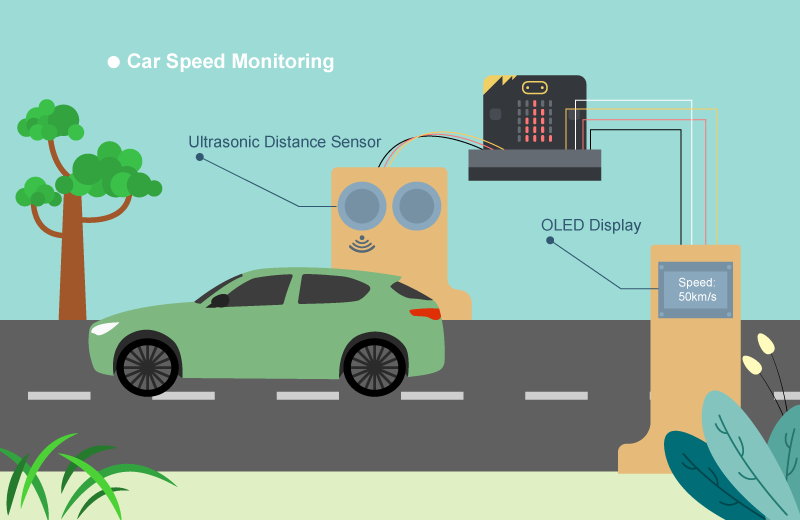

Car speed monitor operation

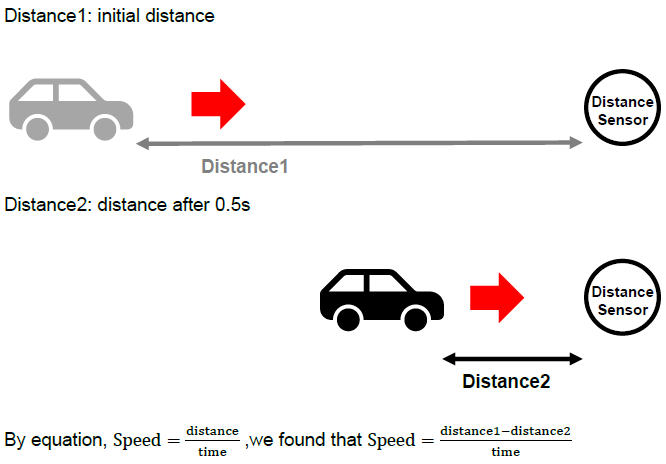

The distance sensor measures two different distances at certain time interval, and therefore car speed can be calculated and shows it on the OLED.

On every 500ms (0.5 second), the distance sensor will keep updating distance between the sensor and the car.

auto_fit

If distance 1 ≥ distance 2, that’s say the car is moving towards. The moving distance is distance1 -distance2. The speed is (distance1-distance2)/0.5 (unit: cm/s)

If distance 1 = distance 2, that’s say the car has stop moving or there are no cars. The moving distance and speed are 0

For car speed < 0, it is the exceptional case (the car turns left/right and leave the road) and the speed will not be shown.

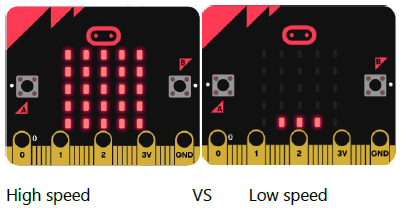

A bar graph on micro:bit LED is shown to indicate the instant speed of the cars.

auto_fit

pic_70

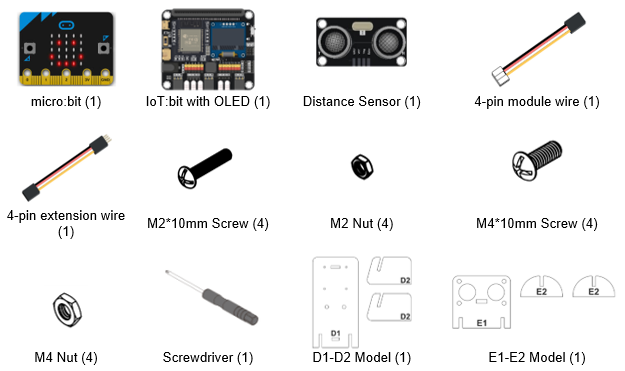

8.3. Part List

auto_fit

8.4. Assembly step

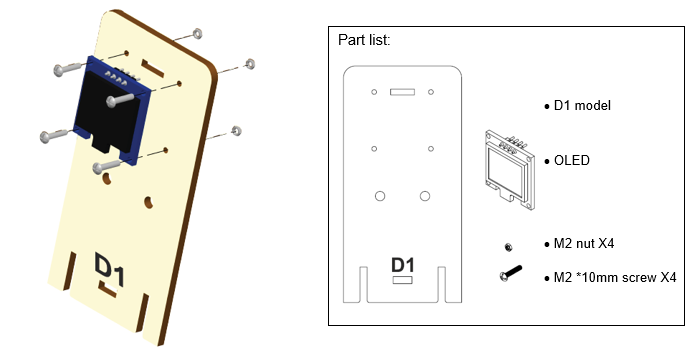

Step 1

Attach the OLED to D1 model using M2 * 10mm screw and nut.

auto_fit

Step 2

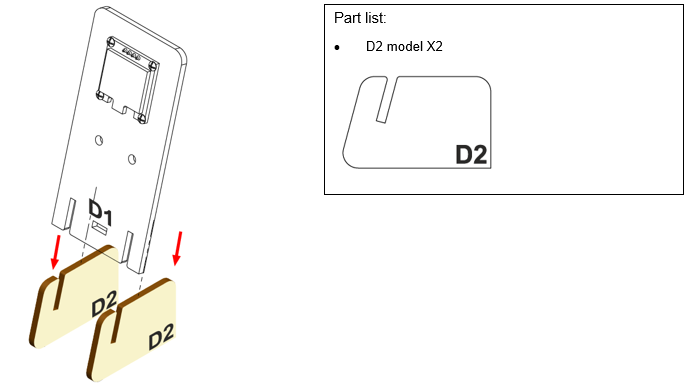

Put D2 model onto the D1 model.

auto_fit

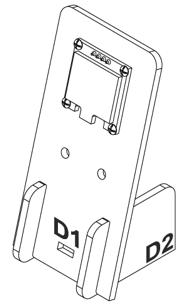

Step 3

Assembly completed! pic_40

Step 4

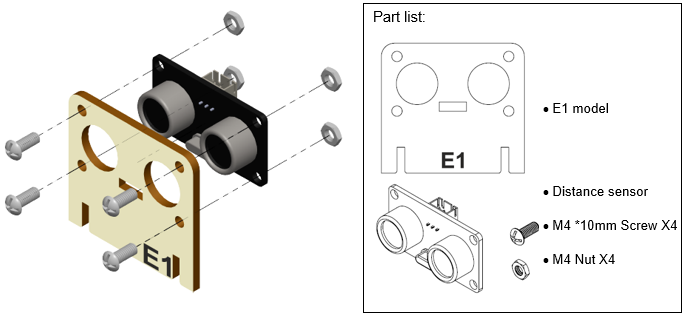

Attach the distance sensor to E1 model using M4 screw and nut.

auto_fit

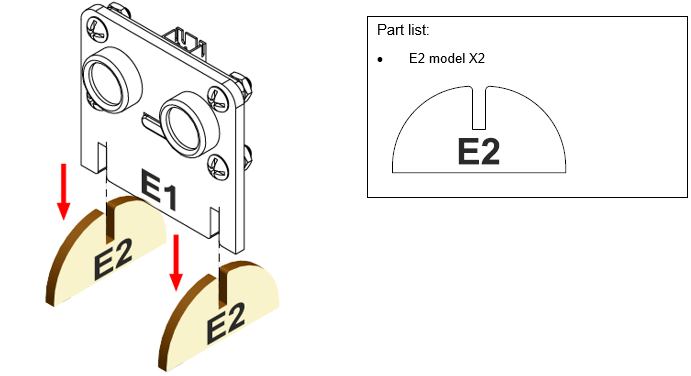

Step 5

Put the E2 model onto E1 model.

auto_fit

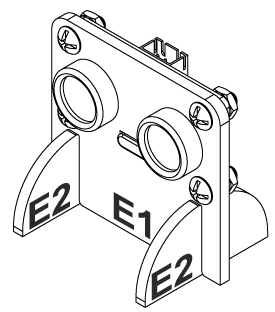

Step 6

Assembly completed!

pic_40

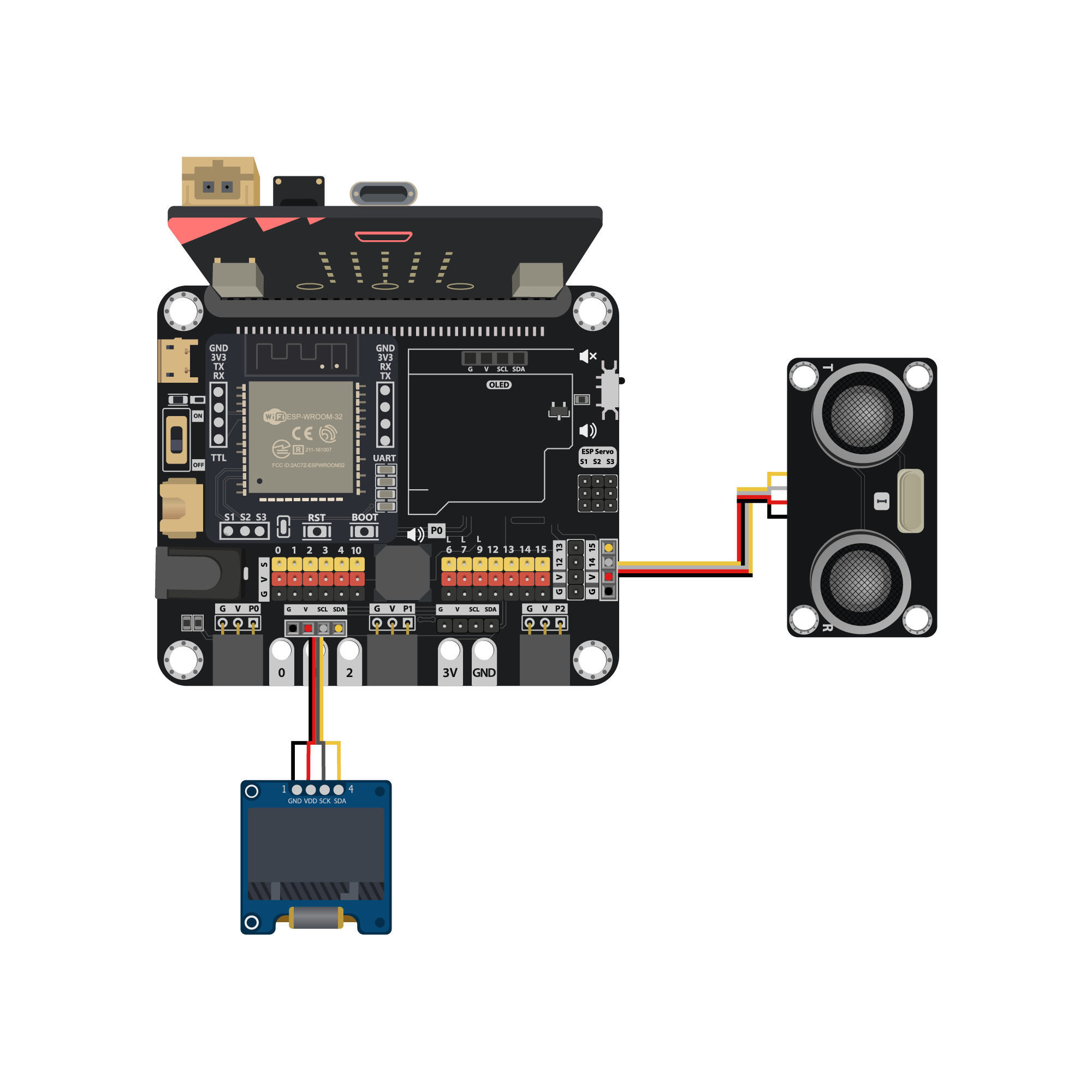

8.5. Hardware connect

Connect the Distance Sensor to P14 (trig)/ P15 (echo) port of IoT:bit

Extend the connection of OLED to the I2C connection port of IoT:bit

auto_fit

8.6. Programming (MakeCode)

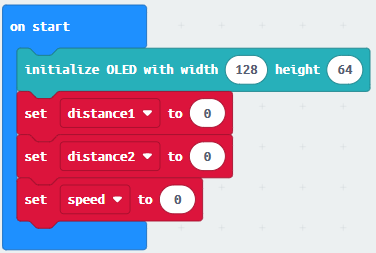

Step 1. Initialize OLED screen

  • Drag Initialize OLED with width:128, height: 64 to on start

  • Set distance1, distance2 and speed to 0 from variables auto_fit

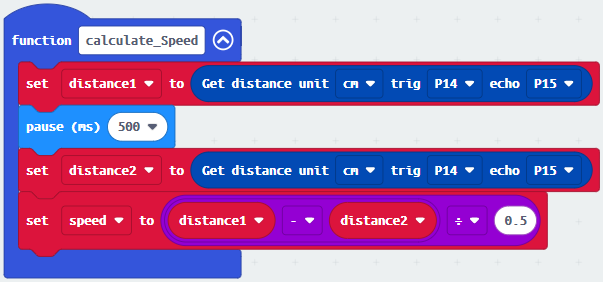

Step 2. Set up function (calculate_Speed)

  • Set up a new function calculate_Speed from Advanced > Functions.

  • Set distance1 to get distance unit cm trig P14 echo P15 (distance from the car to the distance sensor before 0.5 second) Drag Pause to wait 500ms and set distance2 to get distance unit cm trig P14 echo P15 (distance from the car to the distance sensor after 0.5 second)

  • By the equation of speed = distance / time. We get the speed of the moving car to (distance1-distance2)/0.5 (unit: cm/s) auto_fit

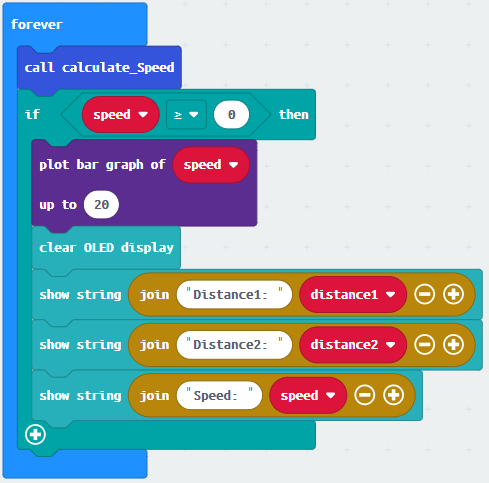

Step 3. Calculate car speed

  • In block forever, call function calculate_Speed from Advanced > Functions to get the speed of the moving car

  • Snap If statement into the loop

  • If speed ≥0, then it will plot bar graph of … from Led and draw variable speed into the plotted value. Set value up to 20

  • Snap clear OLED display from OLED to avoid overlap

  • Snap show string and show value of variables distance1, distance2 and speed auto_fit

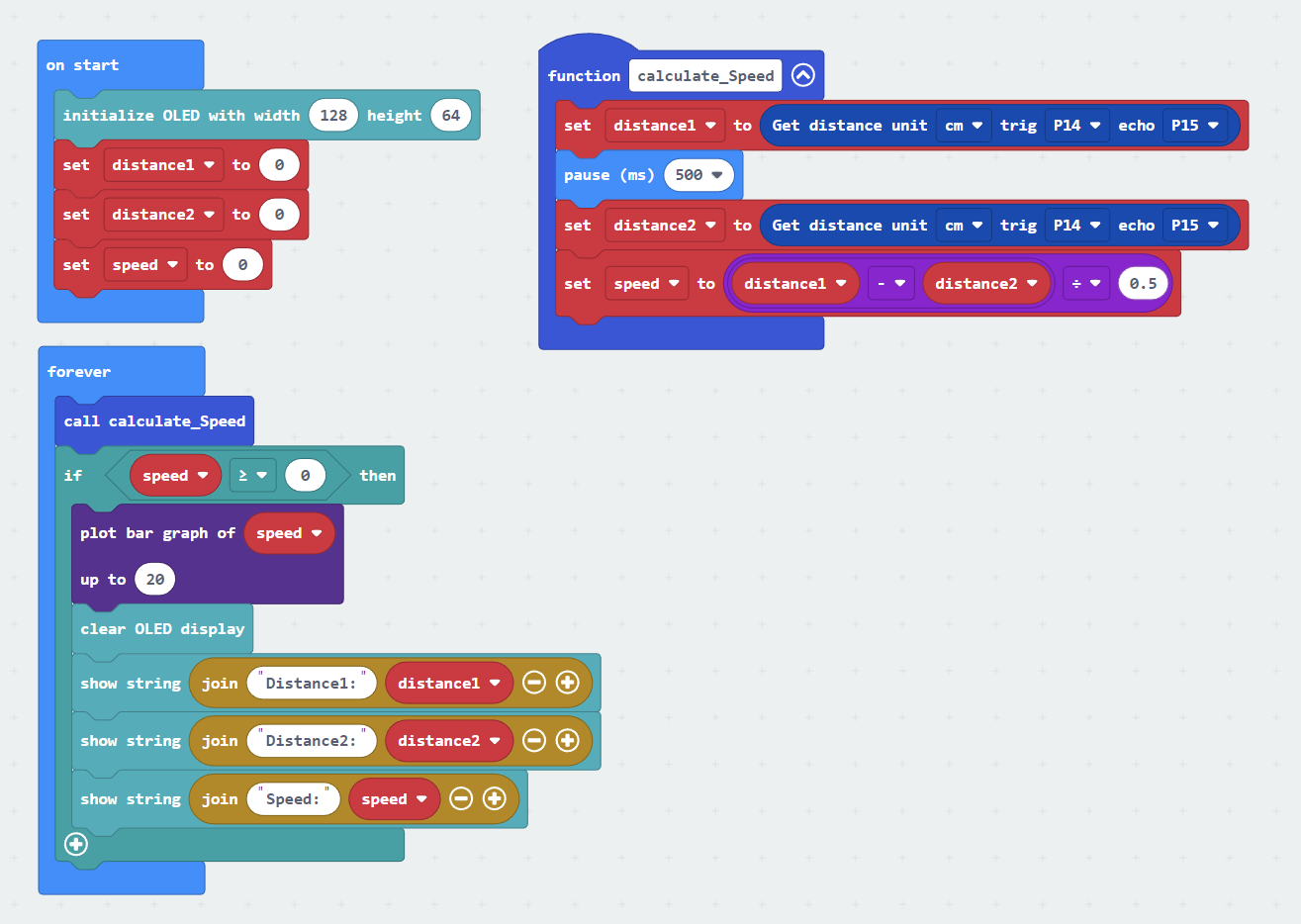

Full Solution

MakeCode: https://makecode.microbit.org/S63378-51064-90381-23413

auto_fit

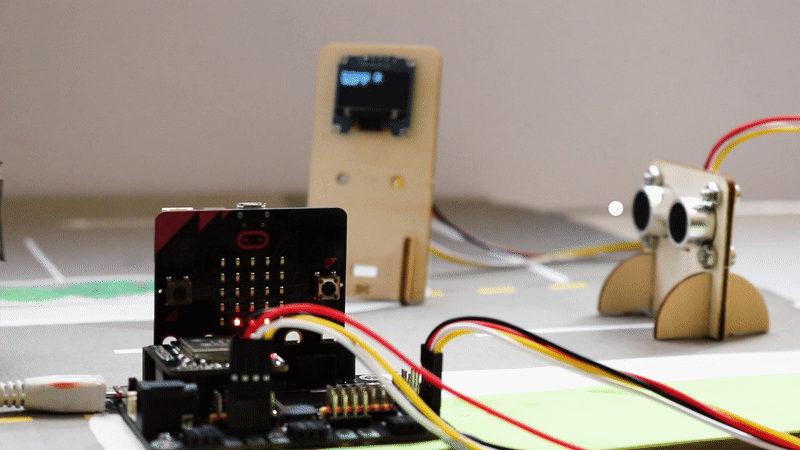

8.7. Results

It will keep checking the distance of cars from distance sensor by distance sensor in every 500ms. The speed of the cars will be shown on OLED. A bar chart of speed will be shown on micro:bit LED also.

auto_fit

8.8. Think

How can we set a sound alert to notify that there is car over-speeding?
