10. IoT Case 07: Smart defense system

Level: level auto_fit

10.1. Goal

Make a smart defense system which emits sound and sends an email to the house owner if there are any suspicious movement near the door.

10.2. Background

What is IFTTT?

IFTTT can help connect all your different apps and devices which enables them to work together to do specific tasks.

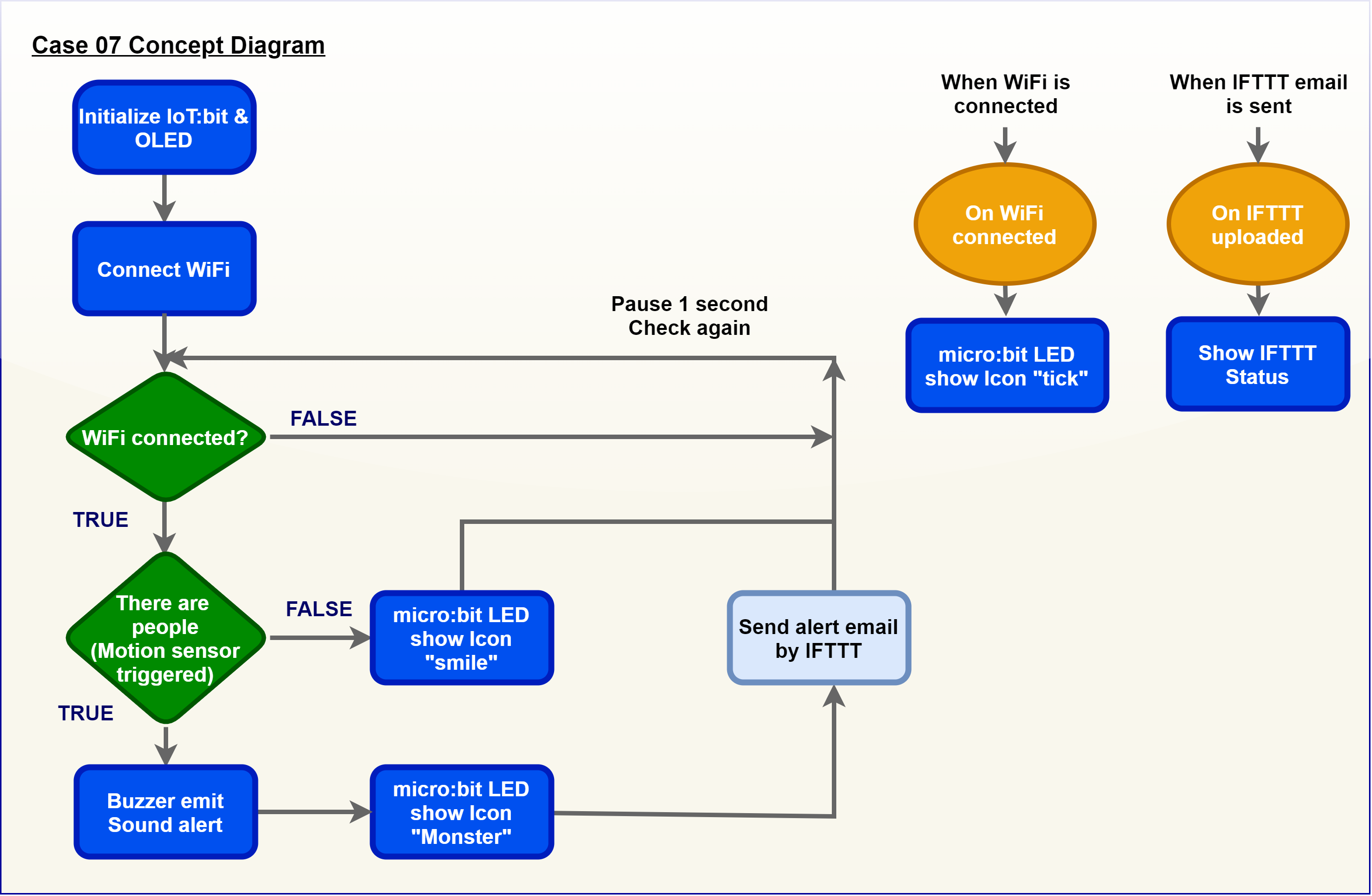

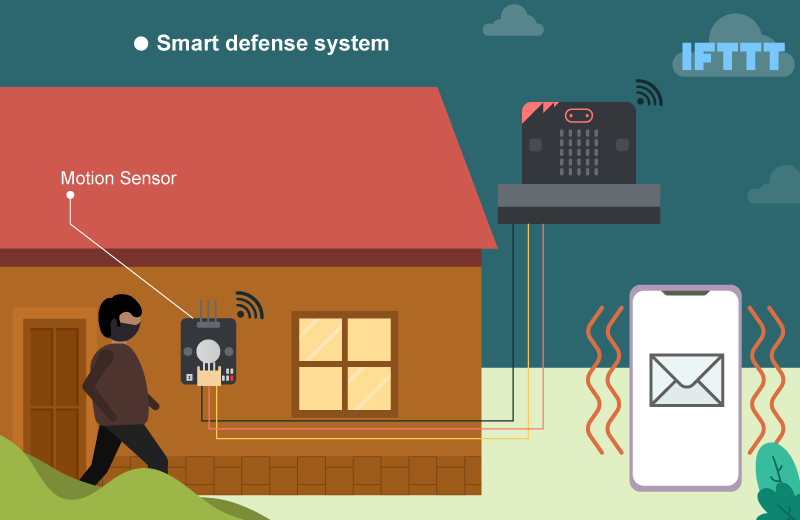

Smart defense system operation

The motion sensor can deliver a motion signal to the micro:bit. When the micro:bit detects the signal, the buzzer will emit sound and send an email to specific email account through IFTTT. Also, a monstor icon will be shown on the micro:bit if there are suspicious people passes by.

auto_fit

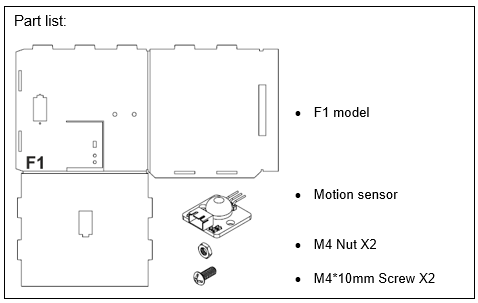

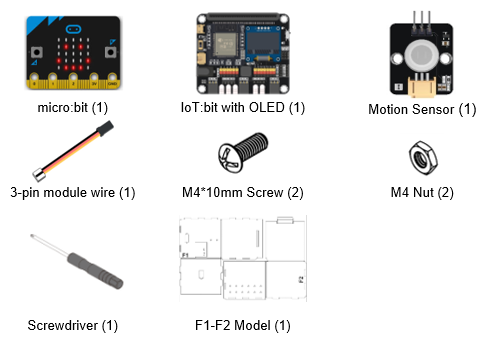

10.3. Part List

auto_fit

10.4. Assembly step

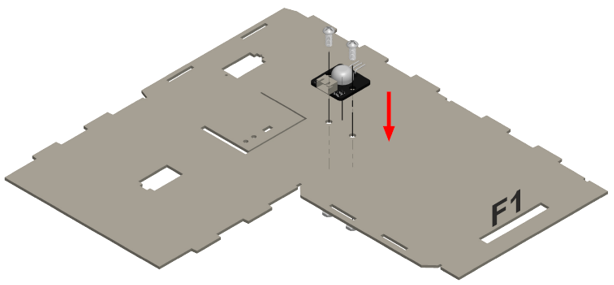

Step 1

Attach the motion sensor to F1 model. auto_fit

auto_fit

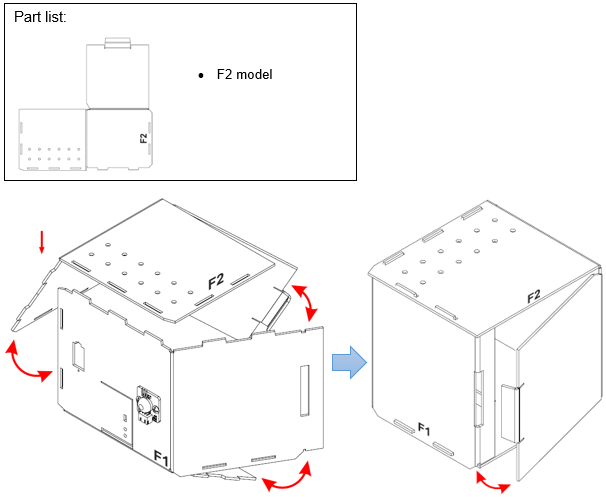

Step 2

Put together all the cardboard parts (F1-F2) auto_fit

Step 3

Assembly completed! pic_60

10.5. Hardware connect

Connect the Motion Sensor to P1 port of IoT:bit

Turn on the Buzzer Switch on P0 port of IoT:bit

auto_fit

Pull the buzzer switch ’down’ to connect the buzzer in this execrise

10.6. Programming (MakeCode)

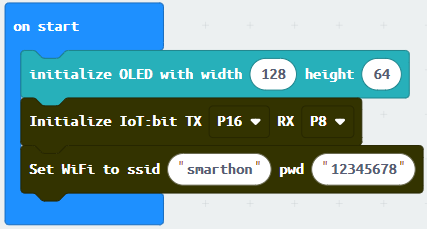

Step 1. Initialize OLED, IoT:bit and connect to WiFi

  • Snap Initialize OLED with width:128, height: 64 to on start

  • Snap Initialize IoT:bit TX P16 RX P8 from IoT:bit to on start

  • Snap Set Wi-Fi to ssid pwd from IoT:bit

  • Enter your Wi-Fi name and password. Here we set smarthon as SSID and 12345678 as password auto_fit

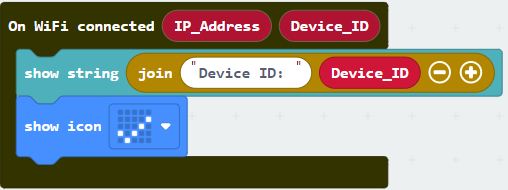

Step 2: Show icon “tick” after WiFi connection

  • Snap show icon from basic to On WiFi connected and select icon tick *Snap show string to On WiFi connected and show Device ID auto_fit

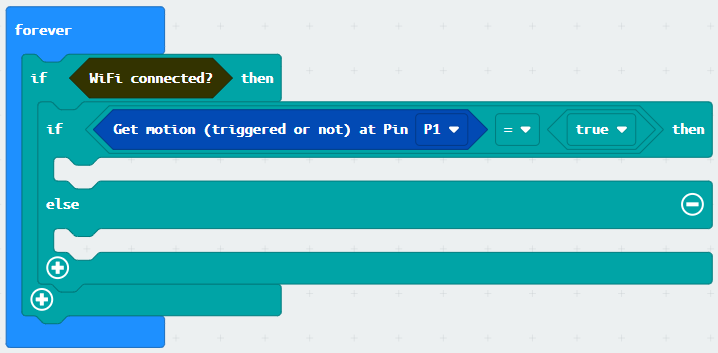

Step 3. Check motion sensor value

  • Snap if statement to block forever

  • If WiFi is connected,

  • If get motion (triggered or not) at Pin P1 = true then, that’s say someone is near the door. auto_fit

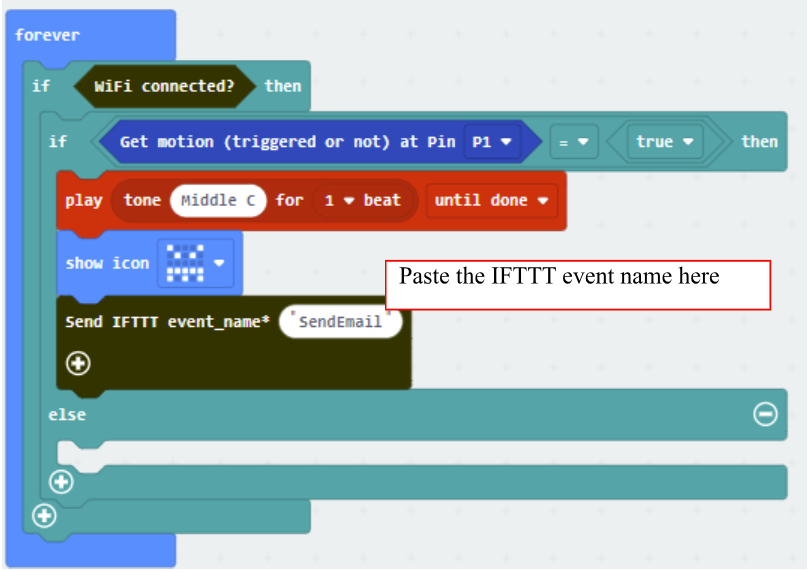

Step 4. Send notification when someone pass by

  • Snap if statement to block forever

  • If WiFi is connected, then snap play tone Middle C for 1 beat from music

  • Snap show icon from basic and select a monster icon

  • Snap Send IFTTT event_name*… from IoT:bit > IoT Services, input your event name SendEmail auto_fit

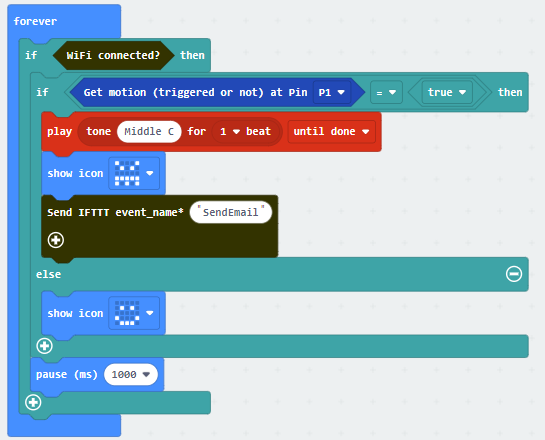

Step 5. Show smile icon when no one pass by

  • Snap show icon into Else, and select icon smile

  • Snap Pause after if statement to the loop for 1 second delay for checking auto_fit

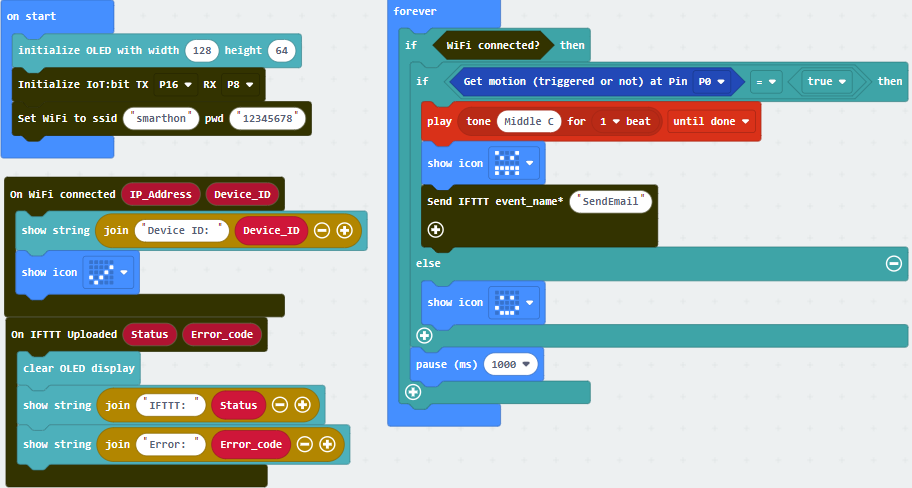

Full Solution

MakeCode: https://makecode.microbit.org/S25125-53311-95019-94178 auto_fit

Download the hex file:

10.7. IoT (IFTTT)

* For more details, please refer to Chapter 2: Send Email by IFTTT

Step 1

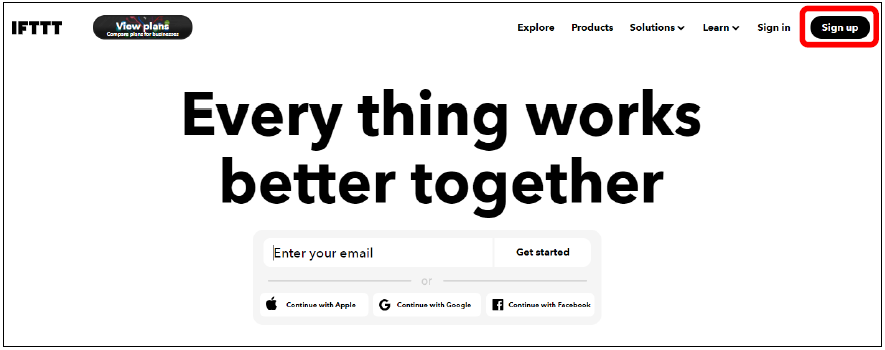

Go to http://www.ifttt.com, register an account and login to the platform

auto_fit

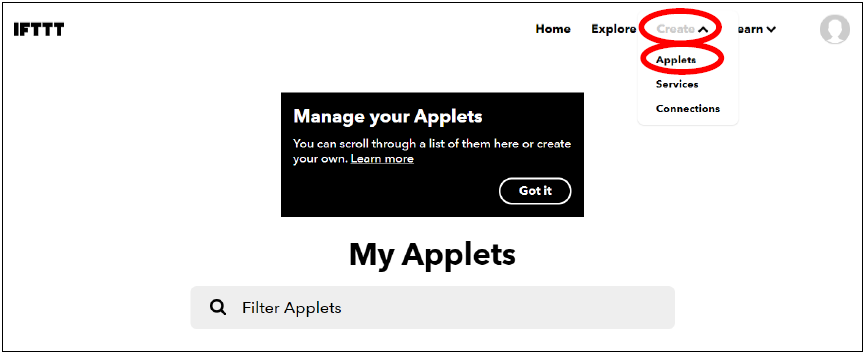

Step 2

On the top right menu, click “Create” > “Applets”

auto_fit

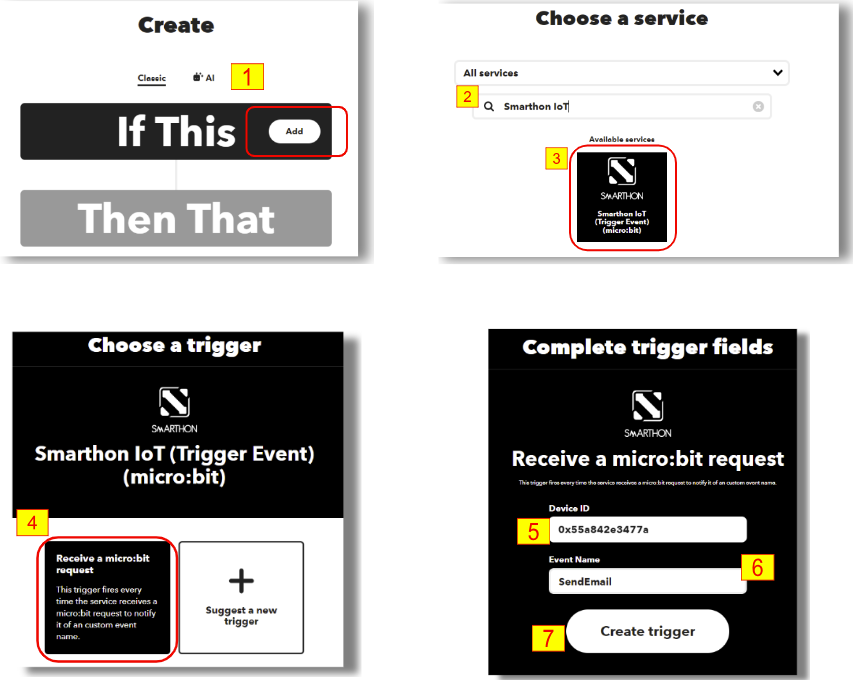

Step 3

  • Select this

  • Select Smarthon IoT

  • Input Device ID and Event Name. (eg. Device ID: 0x55a842e3477a, Event Name: SendEmail)

  • Click “Create trigger”

auto_fit

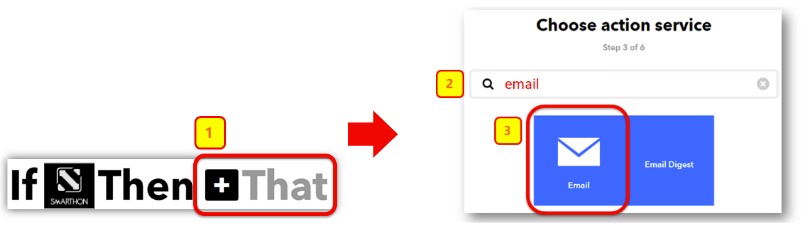

Step 4

Select “That” > Email > Email

auto_fit

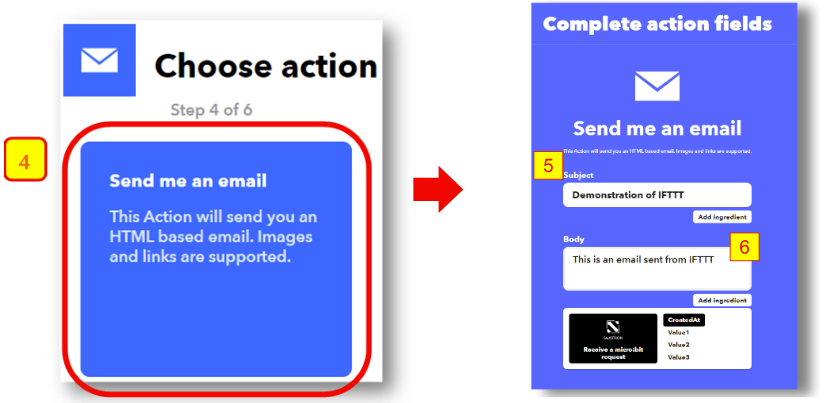

Step 5

Select “Send me an email” , Input email title and body, then click “Create action”

auto_fit

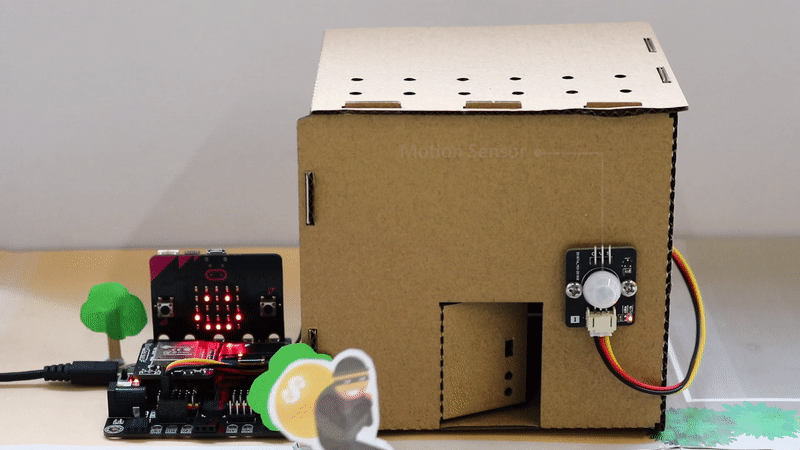

10.8. Result

When WiFi is connected, if there are any suspicious movement near the door, the buzzer will emit sound and an email will be sent to the house owner. Also, a monster icon will be shown on the micro:bit.

auto_fit

auto_fit

10.9. Think

Q1. How to avoid sending duplicate emails? (tips: using variable)

Q2. How to distinguish suspicious people (e.g. password authentication)?
