13. IoT Case 10: Smart Street Light

Level: level auto_fit

13.1. Goal

Make a smart streetlight which can have a button to control on off.

13.2. Background

What is Smart Street Light?

To improve the living stand of citizen and to save electricity, smart street light can be automatically turned on at night (eg.6pm) and turned off in the morning (eg.6am)

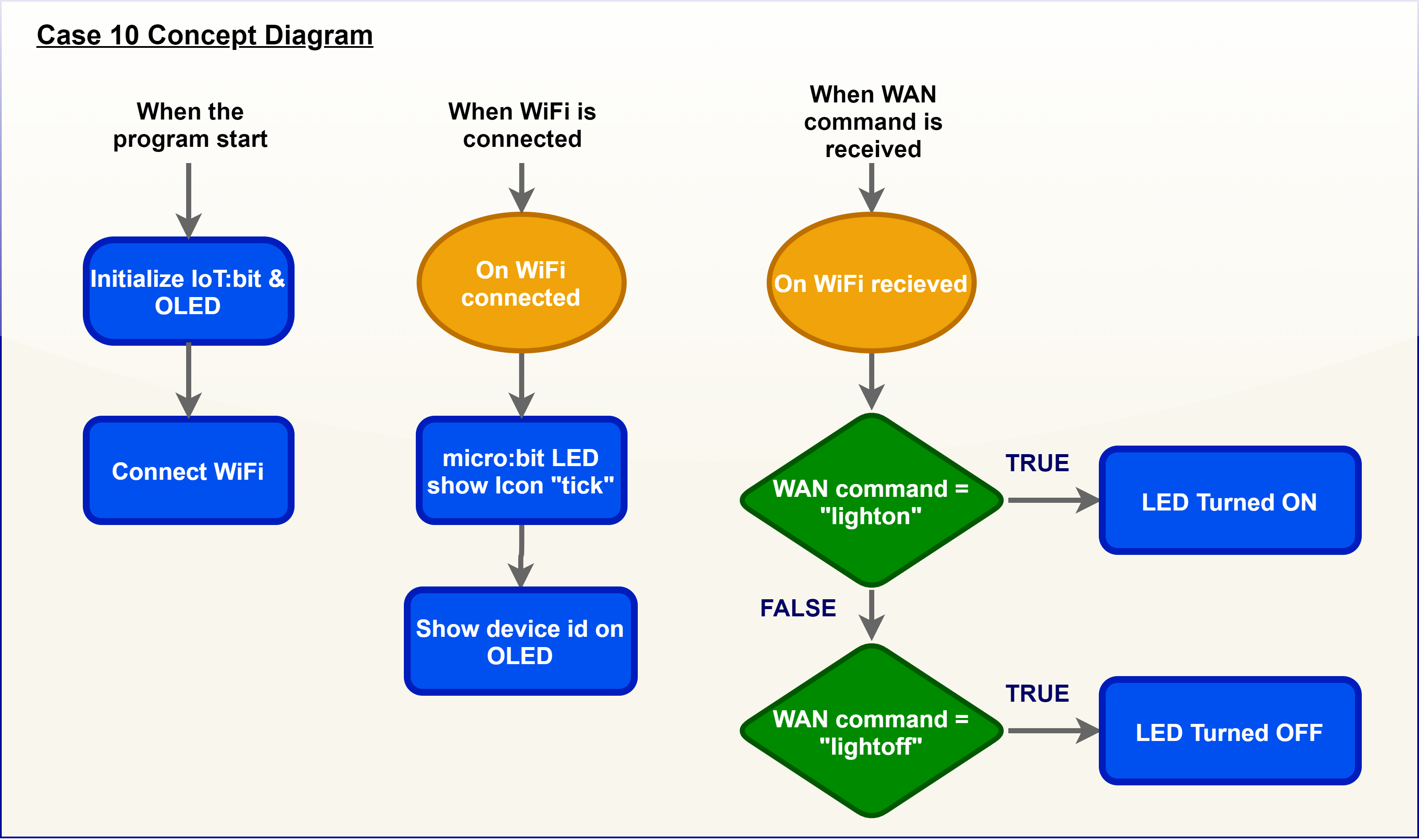

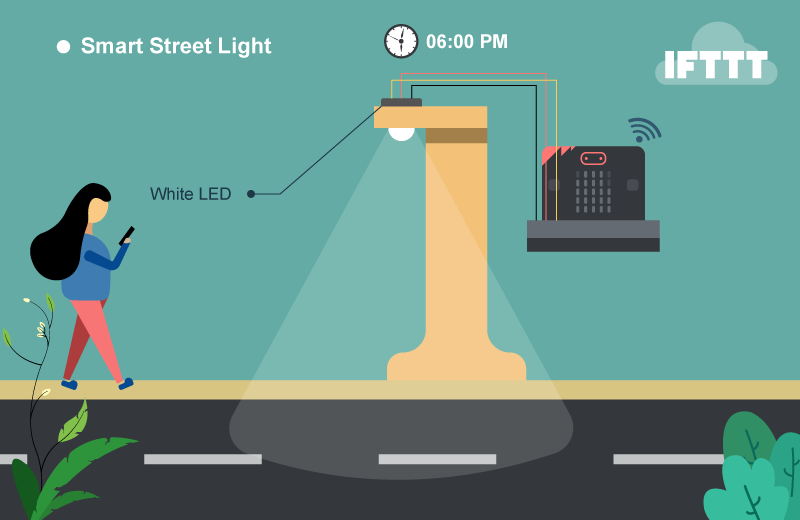

Smart Streetlight operation

When WAN commands are received from WAN (eg. IFTTT), micro:bit will get the command name. If the command name is “light_on”, the LED light will be turned on. If the command name is “light_off”, the LED light will be turned off.

auto_fit

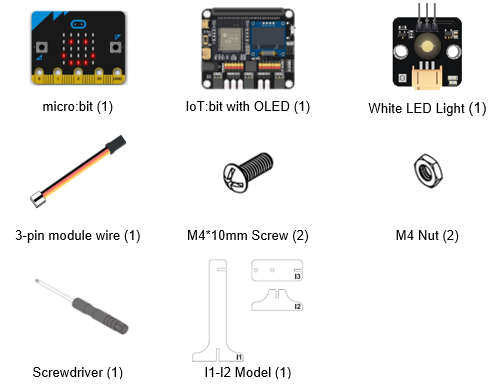

13.3. Part List

auto_fit

13.4. Assembly step

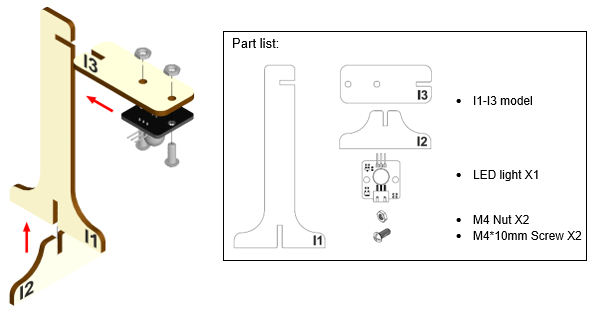

Step 1

Attach the LED light to the model I2 with M4 screw and nuts. Put together all the cardboard parts (I1-I3)

auto_fit

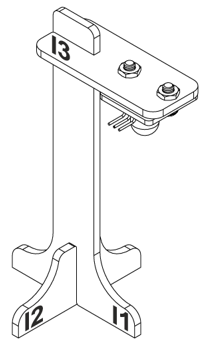

Step 2

Assembly completed!

pic_40

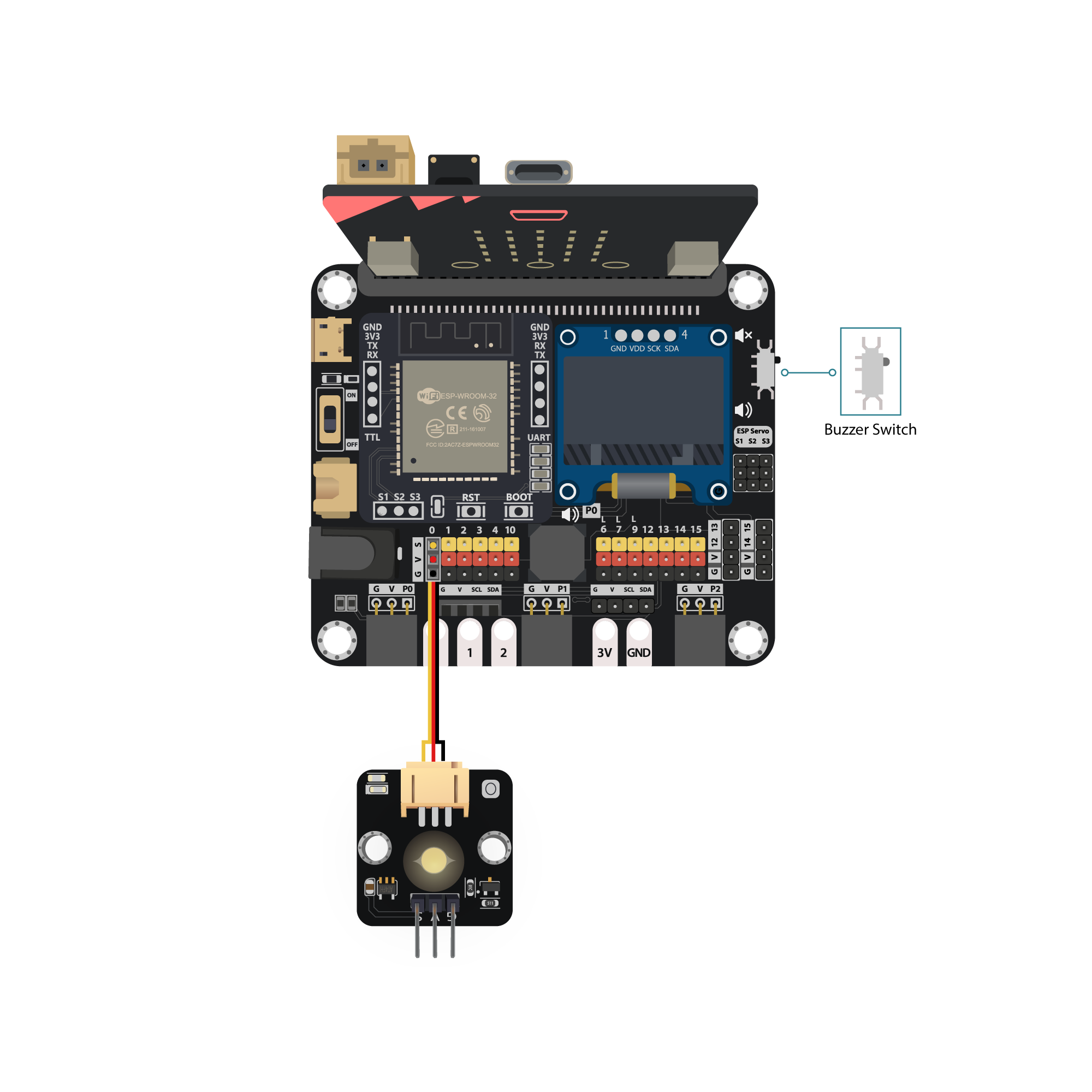

13.5. Hardware connect

Connect the white LED Light to P0 port of IoT:bit

auto_fit

Pull the buzzer switch ‘up’ to disconnect the buzzer in this execrise

13.6. Programming (MakeCode)

Step 1. Initialize OLED, IoT:bit and connect to WiFi

  • Snap Initialize OLED with width:128, height: 64 to on start

  • Snap Initialize IoT:bit TX P16 RX P8 from IoT:bit to on start

  • Snap Set Wi-Fi to ssid pwd from IoT:bit

  • Enter your Wi-Fi name and password. Here we set smarthon as SSID and 12345678 as password auto_fit

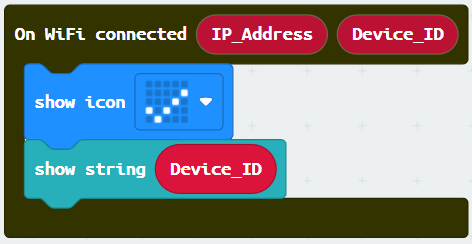

Step 2. Show icon “tick” after WiFi connection

  • Snap show icon from basic to On WiFi connected and select icon tick

  • Draw the Device ID variable from On WiFi connected to the show string block placeholder pic_60

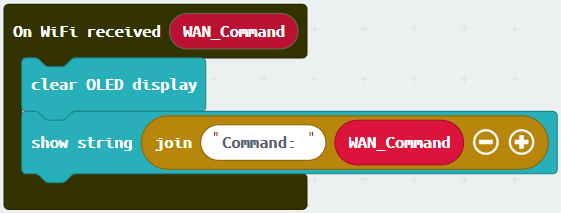

Step 3. Receive WAN command

  • Go to OLED

  • Snap the clear OLED display to On WiFi received to avoid overlap

  • Snap the show string to On WiFi received

  • Draw the WAN_Command variable to show string placeholder pic_80

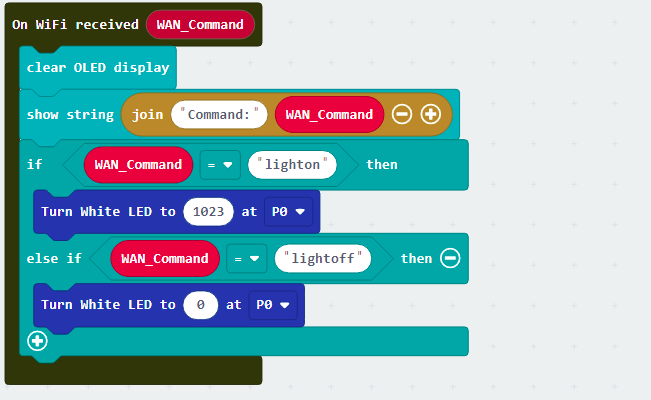

Step 4. Turn on/off LED by WAN command

  • Snap if-condition

  • Set variable WAN_Command = lighton into if-condition

  • turn White LED … from SmartCity > Output, turn white LED with intensity: 1023 at P0

  • Set variable WAN_Command = lightoff into else-if-condition

  • Snap turn White LED … from SmartCity > Output, turn white LED with intensity: 0 at P0 auto_fit

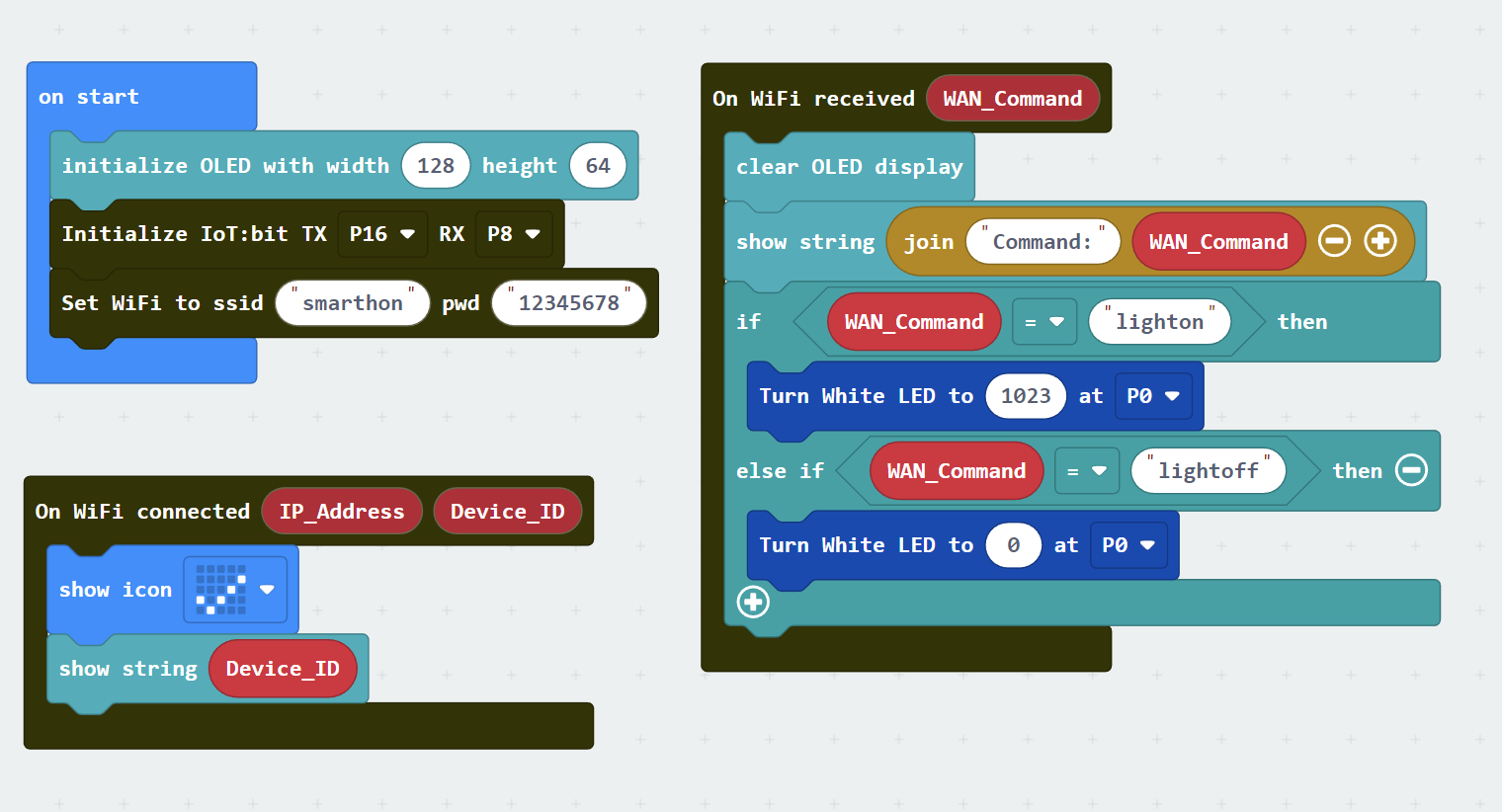

Full Solution

MakeCode: https://makecode.microbit.org/S04795-22528-30275-73994

auto_fit

13.7. IoT (IFTTT)

* For the setting of IFTTT, please refer to “Chapter 4: Cloud Control micro:bit by IFTTT”

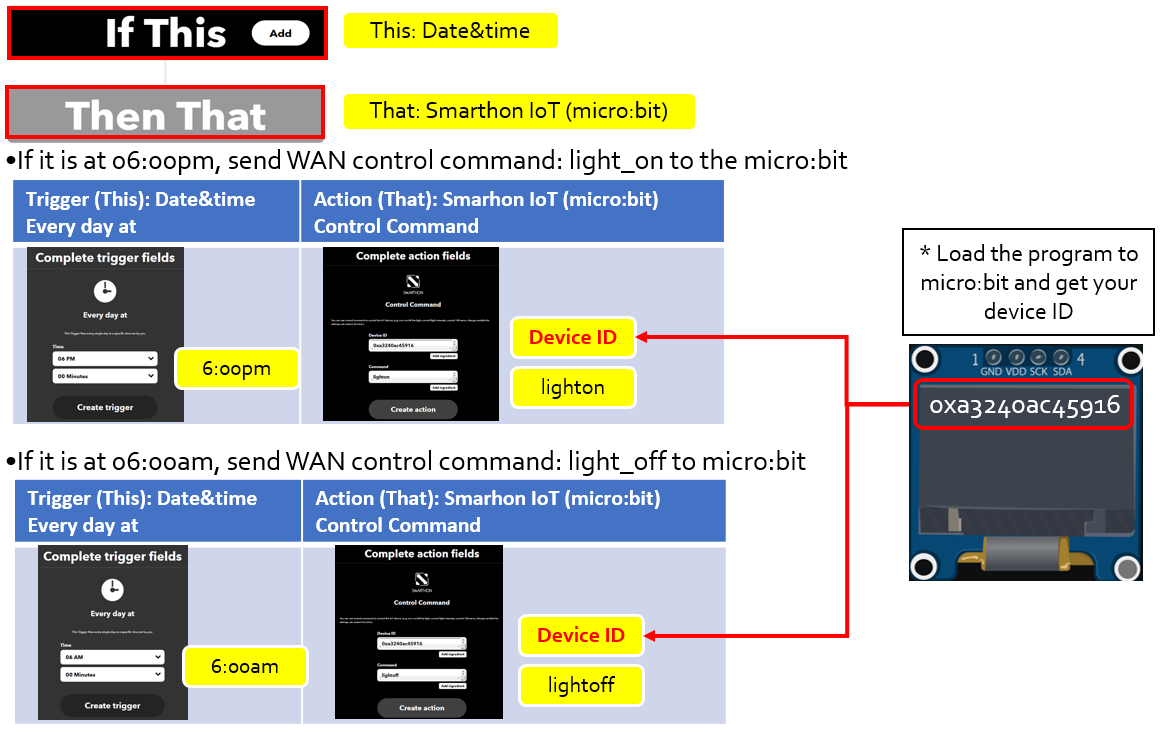

Step 1. Create applet in IFTTT

auto_fit

13.8. Result

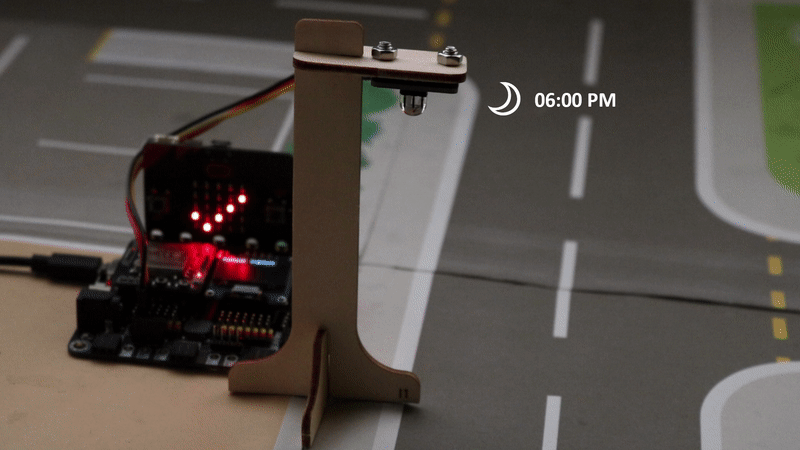

The micro:bit is controlled by IFTTT (trigger by date&time). The LED light will be turned on at 6pm and turned off at 6am every day.

auto_fit

13.9. Think

Q1. How to turn on the light automatically if the today’s weather is cloudy reported by IFTTT.
